Bosch Rexroth - Web HMI for smart press applications

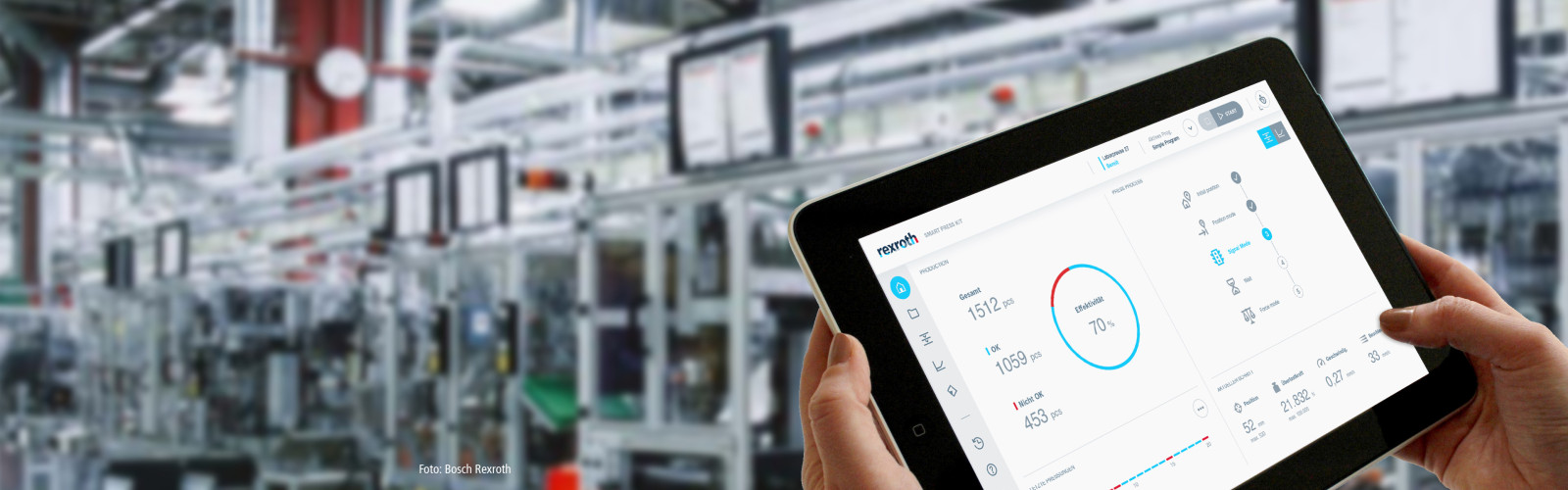

The Bosch Rexroth "Smart Function Kit for Pressing" is a new type of modular HMI for assembly and joining processes, forming technology, and inspection and test applications. The modern and intuitive Web HMI enables modular process configuration via drag & drop. This allows press programs to be created safely and easily - without writing a single line of code.

Publication
Client
Bosch Rexroth
Industry
Factory Automation
DISCIPLINE
UX Design

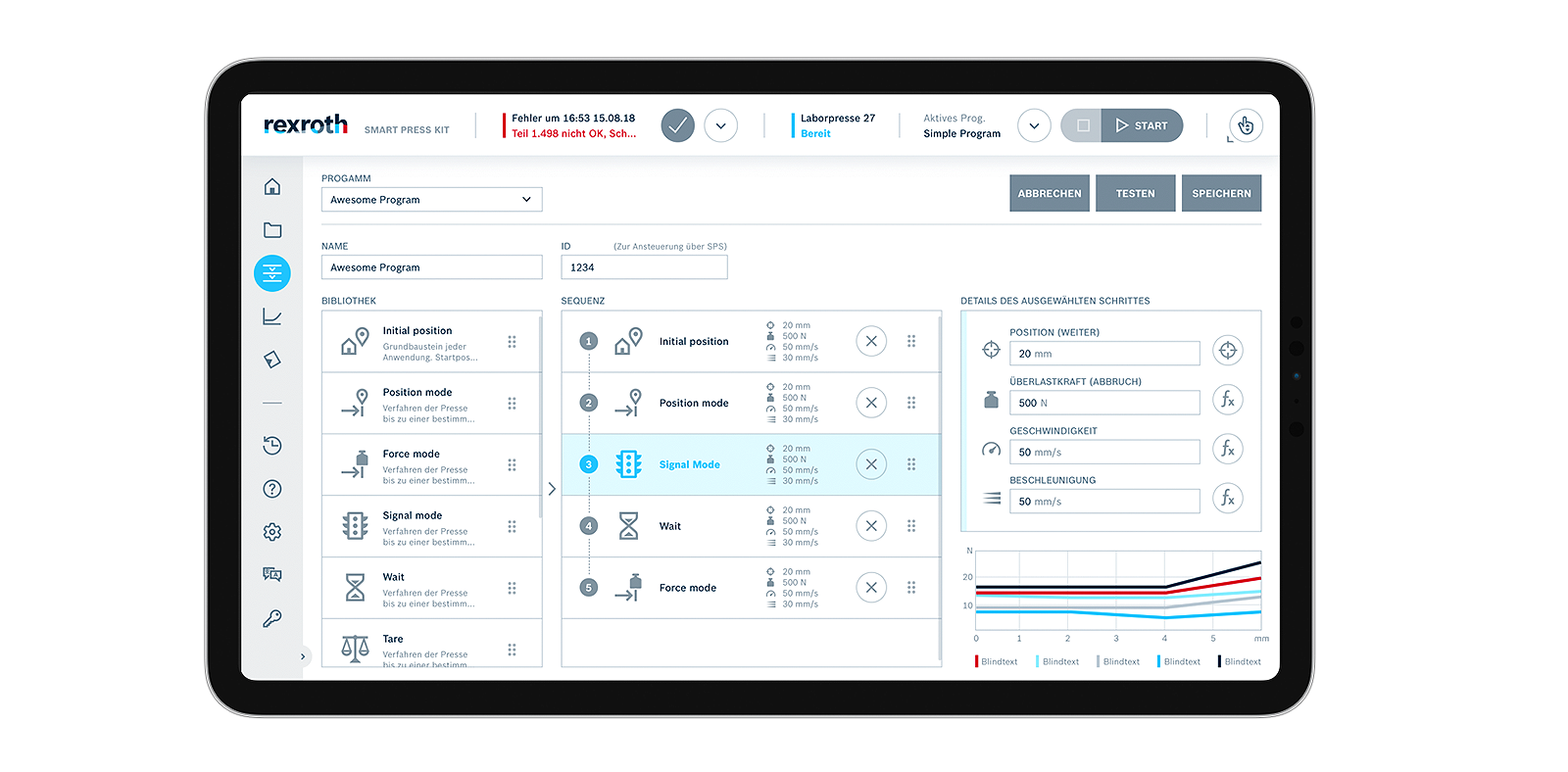

Drag&Drop configuration of programs

The modularity of the components is also reflected in the software. Processes can be put together using Drog&Drop. This makes it possible to set up the system immediately without any previous knowledge. Evaluation and analysis elements can be visualized in a self-explanatory manner.

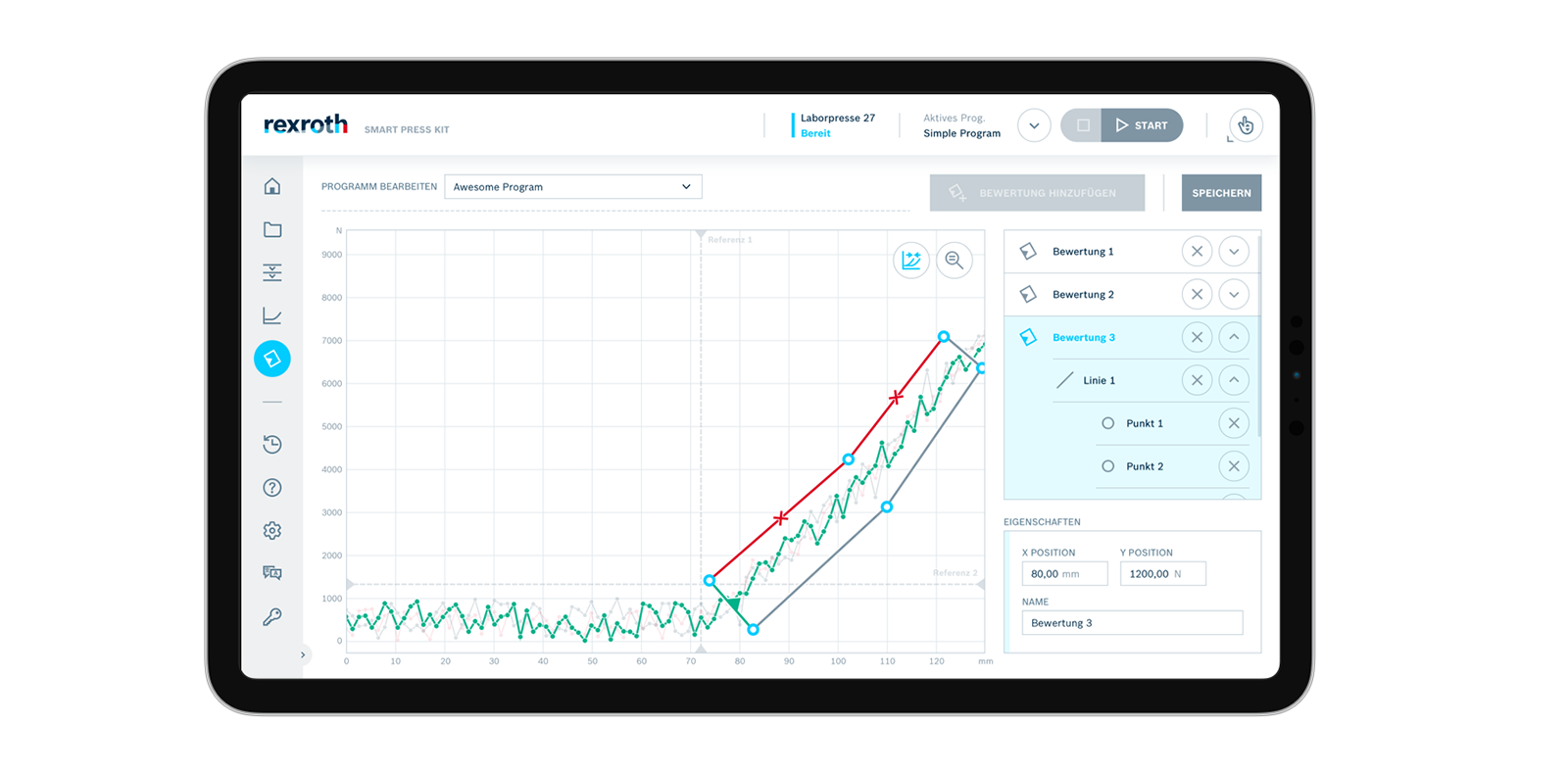

Testing the program

You can test the pressing process and visually analyze the results. The evaluation elements are simply visualized, so that the analysis can be easily carried out

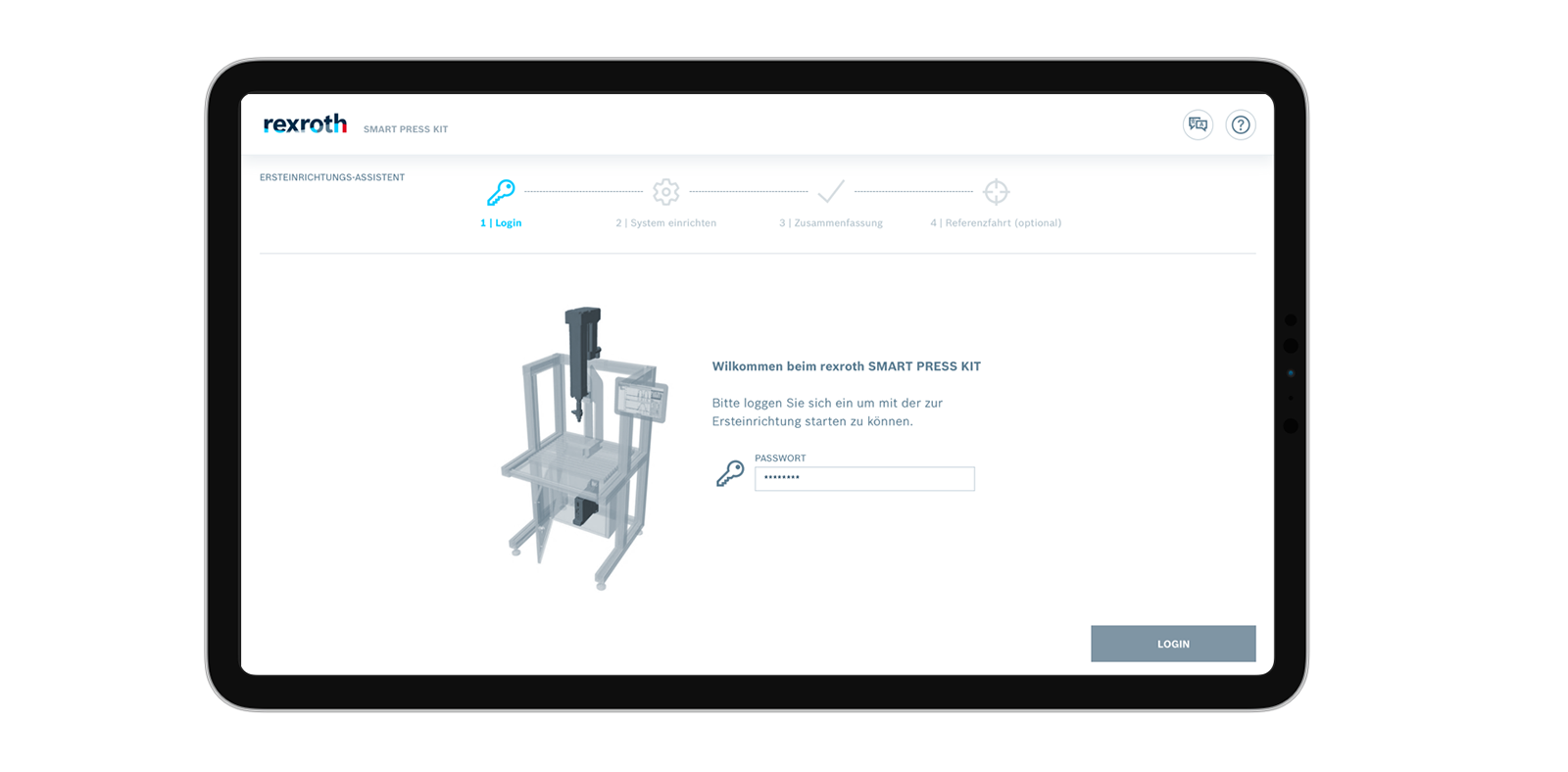

Set-up wizard for initial configuration

A wizard leads step by step through the initial configuration. It supports the setup engineer with smart features such as automatic loading of the hardware configuration.

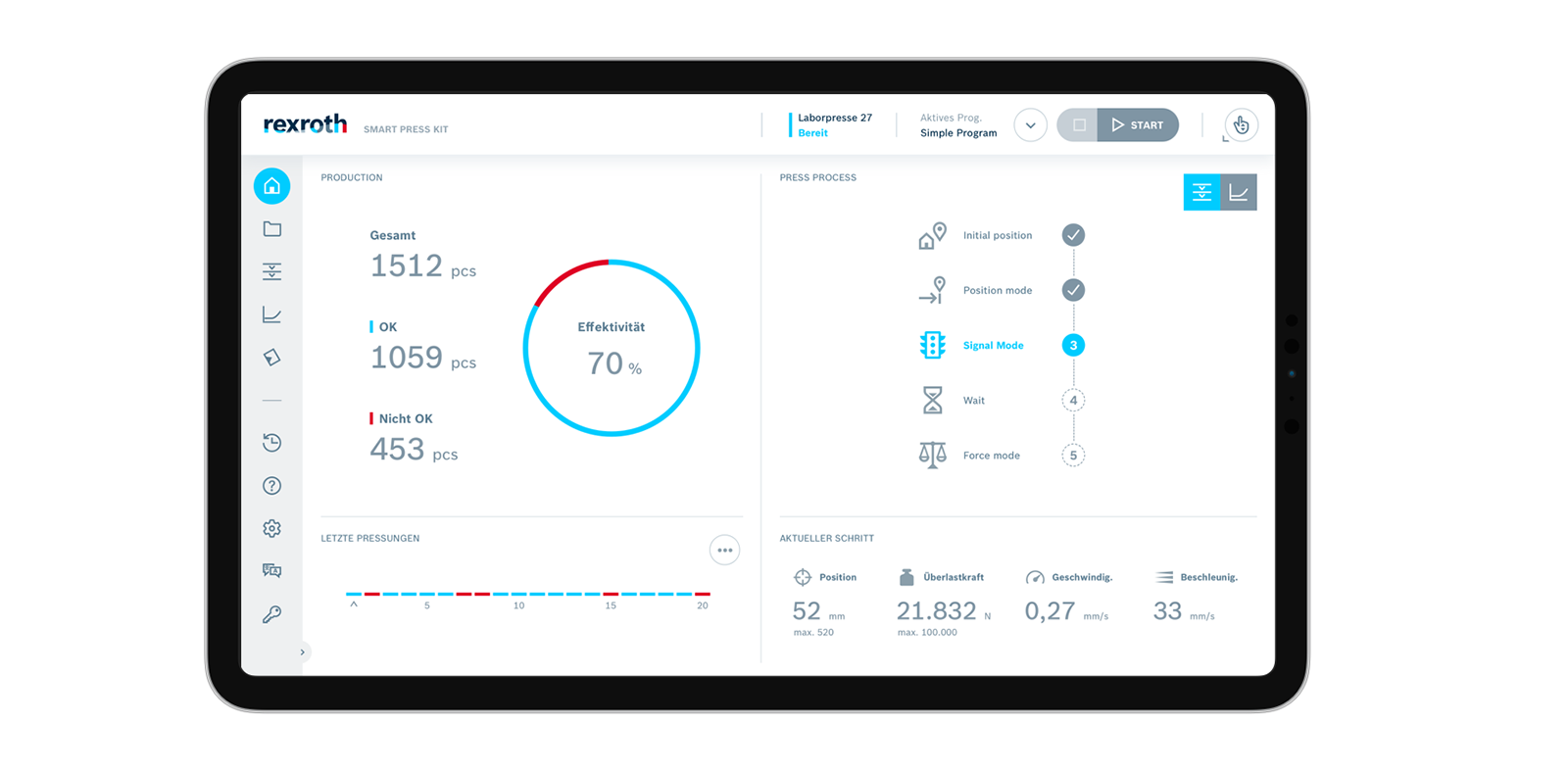

Dashboard for the operator

The operator is only shown the information that is important to him. For example, he has a dashboard view that bundles the most important operating parameters on one page.

Project work

We developed the usability and user experience concept of the HMI as well as the visual design.
